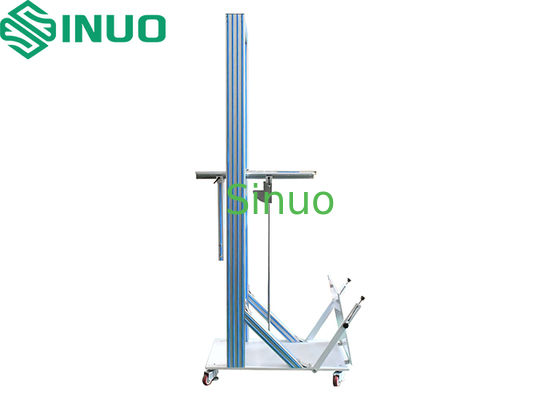

IEC60598-1 High-Energy Pendulum Hammer Impact Test Apparatus IK08
  • Naam
  • Naam
  • Naam
  • Naam

IEC60598-1 High-Energy Pendulum Hammer Impact Test Apparatus IK08

MOQ: 1
Prijs: Onderhandelbaar
Standaardverpakking: multiplexkast
Leveringstermijn: 30 dagen
Betalingswijze: T/t
Toeleveringskapaciteit: 10 sets per maand
Details Informatie
Productbeschrijving
Detailinformatie
Plaats van herkomst
CHINA
Merknaam
Sinuo
Certificering
Calibration Certificate(Cost Additional)
Modelnummer
SN2122
Toegepaste standaard:
IEC60068-2-75, IEC60598-1
IK-code:
Van IK00 tot IK11
Pendelbuis:
Lengte: 1000 mm, diameter: 15,9 mm
Opvallend materiaal:
roestvrij staal
Effecthoogte:
200–1200 mm
Controlemethode:
Handmatig
Markeren:

IEC60598-1 pendulum hammer tester

,

IK08 impact test apparatus

,

high-energy electrical testing equipment

Productbeschrijving
IEC60598-1 High-Energy Pendulum Hammer Impact Test Apparatus IK08
This test apparatus is designed for impact resistance testing of household and similar electronic/electrical products and their accessories (plugs, sockets, wall-mounted boxes, screw glands, covers, switches, lamps, etc.) to evaluate product safety performance and strength levels.
Compliance Standards
  • IEC60068-2-75:2014 "Environment testing for electric and electronic products - Test Eh: Hammer tests"
  • IEC60598-1:2017 "Luminaires - General requirements and tests"
  • IEC62262:2002 "Degrees of protection against external mechanical impacts (IK code)"
Structural Features
  • Trolley structure with mobility for left/right positioning
  • Adjustable impact point height via screw guide mechanism
  • Impact angle adjustable from 0° to 90°
  • 1m pendulum tube for free release of striking element
  • Iron base plate with automotive baked paint coating
  • Aluminum alloy frame construction
  • Stainless steel hammer head
Technical Parameters
Striking Elements (Energy/J) 5J (IK08)
Equivalent Mass 1.7 kg (see Table 1)
Striking Elements Material Steel
Pendulum Tube 1000mm length, 15.9mm outer diameter, 1.5mm wall thickness steel pipe
Impact Point 200-1200mm stroke, manually adjustable via handwheel
Height of Fall 0-500mm with scale display IEC60598-1 High-Energy Pendulum Hammer Impact Test Apparatus IK08 0
Striking Element Fix and Release Mechanical latch fixation, manual release
Base plate Thickened load-bearing steel plate
Mobility Caster wheels for positioning
Anti-secondary impact function No
Annex Tables
IEC60598-1 High-Energy Pendulum Hammer Impact Test Apparatus IK08 1 IEC60598-1 High-Energy Pendulum Hammer Impact Test Apparatus IK08 2
IK Code Energy Relationship
IK Code IK00 IK01 IK02 IK03 IK04 IK05 IK06 IK07 IK08 IK09 IK10 IK11
Energy / J a 0.14 0.2 0.35 0.5 0.7 1 2 5 10 20 50
Note 1: For higher impact energy requirements, 50J is recommended.
Note 2: Two-digit representation prevents confusion with single-digit energy indicators in other standards.
a: Unprotected according to this standard
IEC60598-1 High-Energy Pendulum Hammer Impact Test Apparatus IK08 3
