High-Precision Drop Test System For Packaging Impact And Reliability Testing

MOQ:	1
Prijs:	Customized
Standaardverpakking:	multiplex kast
Leveringstermijn:	30 dagen
Betalingswijze:	T/T
Toeleveringskapaciteit:	10 sets per maand

Details Informatie

Productbeschrijving

Detailinformatie

Plaats van herkomst

China

Merknaam

Sinuo

Certificering

Calibration Certificate(Cost Additional)

Modelnummer

SN1220

Hoogte laten vallen:

200–1500 mm (aanpasbaar)

Testgewicht:

0–100 kg (aanpasbaar)

Hoekfout:

Drop Orientations:

Gezicht, rand

Maximumspecimengrootte:

1200 × 800 × 800 mm (L × B × H)

Afmeting van de slagplaat:

1400 × 1900 × 14 mm (massieve ijzeren plaat, 14 mm dik)

Productbeschrijving

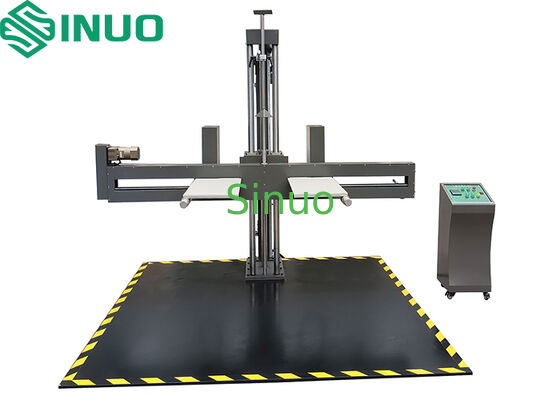

High-Precision Drop Test System For Packaging Impact And Reliability Testing

Product information

This Drop Test System is mainly used to evaluate the impact effects experienced by packaged goods during transportation and handling, in order to determine the shock resistance of the packaging and assess the rationality of the packaging design.

The machine conducts vertical free-fall impact tests on the specimen. The specimen can be dropped freely on its faces, edges, or corners, and the drop height can be preset. Once the specimen reaches the set height, the lifting mechanism stops automatically and holds the position. The distance between the supporting arms can be adjusted electrically according to the product size.

The release mechanism is designed to be flexible and reliable, ensuring that the specimen experiences no external force at the moment of release or during free fall, thereby guaranteeing an accurate drop posture and test result.

Features

1. Precision design and manufacturing, elegant appearance, and ultra-quiet operation.

2. Thickened base plate to withstand the impact force of falling products; the surface is treated with anti-rust baked paint for long-term use without deformation or corrosion.

3. Drop platform surface coated with anti-static baked paint for a refined appearance.

4. Adjustable clamping fixtures to accommodate various product shapes and sizes.

5. Electrically driven lifting mechanism for stable and durable performance.

6. Electromagnetic release system for controlled drop operation.

7. Adjustable arm spacing via electric motor buttons, suitable for testing multiple product types.

Technical Parameters

Drop height	200–1500 mm (customizable)
Maximum test weight	0–100 kg (customizable)
Maximum specimen size	1200 × 800 × 800 mm (L × W × H)
Impact base plate size	1400 × 1900 × 14 mm (solid iron plate, 14 mm thick)
Drop angle error	< 2°
Drop height error	±10 mm
Drop orientations	Face, Edge
Lifting mode	Motor-driven
Height display	Digital counter with calibration function
Drop control	Electromagnetic release, activated by drop button
Reset method	Manual reset
Safety protection	Upper and lower limit switches on the lifting column
Machine dimensions	Approx. 1600 × 2000 × 1850 mm (W × D × H)
Equipment weight	Approx. 550 kg
Power supply	AC 380 V, 50 Hz
Power consumption	1.5 kW
Environmental Conditions	Ambient temperature: 5 °C – +28 °C (average within 24 hours ≤ 28 °C). Relative humidity: ≤ 85% RH.
Power supply	Three-phase five-wire system
Voltage range	AC 380 V
Frequency tolerance	(50 ± 0.5) Hz
Ground resistance	< 4 Ω
Notice:The user should provide an independent air or power switch with sufficient capacity dedicated to this equipment.
