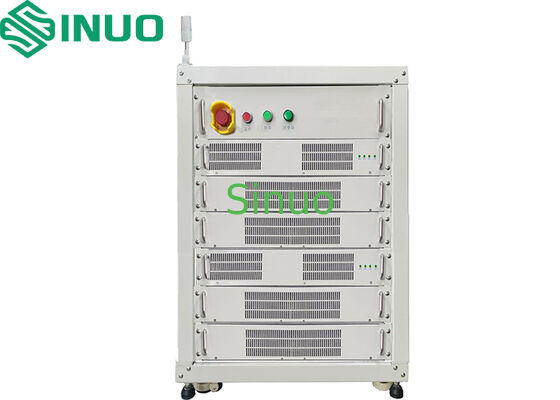

Multi-Channel Regenerative High-Precision Battery Pack Testing Equipment

MOQ:	1
Prijs:	Onderhandelbaar
Standaardverpakking:	Exportpakket
Leveringstermijn:	30 dagen
Betalingswijze:	T/T
Toeleveringskapaciteit:	5 sets per maand

Detailinformatie

Productbeschrijving

Detailinformatie

Plaats van herkomst

China

Merknaam

Sinuo

Certificering

Calibration Certificate (Cost Additional)

Modelnummer

SN552CTS-100V200A

Belangrijkste kanalen:

6 kanalen

Bedrijfsmodi:

Opladen, ontladen, stand-by, stoppen

Het laden Voltagewaaier:

0V-100V

Afladingsspanningsgebied:

15V-100V

Nauwkeurigheid van kanaalspanning:

± (0,05%RD + 0,05%FS)

Kanaalspanningsresolutie:

0.1mV

Markeren:

multi-channel battery testing equipment

high-precision battery pack tester

regenerative battery testing equipment

Productbeschrijving

Multi-Channel Regenerative High-Precision Battery Pack Testing Equipment

This advanced regenerative battery pack testing equipment performs comprehensive testing on lithium-ion batteries, including capacity, state of charge, overcharge, and over-discharge assessments. The system features high power, efficiency, precision, and performance with regenerative energy feedback technology that minimizes heat emission, energy consumption, and operating costs.

System Architecture

The equipment consists of host computer, middle computer, DC/AC modules, DC/DC modules, lower computer, and data acquisition system. It collects real-time voltage, current, capacity, and energy data for individual cells, with optional battery temperature monitoring. Data is stored in a specialized database with comprehensive statistics, analysis, and reporting capabilities.

Main Functions

Battery cycle life testing
Battery capacity testing
DC internal resistance testing (optional)
Charge/discharge characteristic testing
Charge retention testing
Charge/discharge efficiency testing
Deep discharge / constant voltage discharge testing
Overcharge and over-discharge tolerance testing
Temperature characteristic testing
Battery dynamic and operating condition tests (optional)

Key Features

Regenerative energy feedback technology for high efficiency and minimal heat generation
Three-phase balance technology reducing grid load
Soft-start feature to minimize power grid impact
Precision exceeding 0.05% with 1000 ms data logging cycles
Independent channels with separate charge/discharge settings
Comprehensive protection features including reverse connection and power-off resume
No impact current at channel startup with seamless mode transitions
Multi-layer network integration supporting over 1000 channels
Customizable internal resistance testing for battery cell grouping
Modular design for easy maintenance and upgrades

Technical Parameters

Parameter	Specification
Model	SN552CTS-100V200A
Main Channels	6 channels (fully independent)
Voltage Range	Charging: 0V-100V, Discharging: 15V-100V
Current Range	±200A maximum, ±600mA minimum
Accuracy	±(0.05%RD+0.05%FS)
Power Output	20,000W per channel maximum
Efficiency	85% maximum charge and discharge efficiency
Communication	RJ-45 Ethernet interface
Cooling	Forced air cooling
Environmental	-20℃ to 40℃, 10%-90% RH non-condensing

Equipment Advantages

High energy feedback efficiency up to 85%
High output precision with minimal current drift
Comprehensive safety protection features
Battery reverse connection protection
Smooth transitions between constant current and voltage modes
Soft-start function preventing current spikes
High precision DC internal resistance testing

Component List

Component	Manufacturer	Origin
MCU	ST / TI	Italy / France / USA
Fan	Delta / Chint	China
Fuse	Littlefuse / Bussmann	USA
Sampling Resistor	ISABELLENHÜTTE	Germany
Relay	OMRON	Japan

Safety Notes

Ensure proper equipment grounding, maintain clear workspace, do not open internal panels during operation, verify test channels are idle before battery connection/removal, and use emergency stop switch in case of emergencies.
