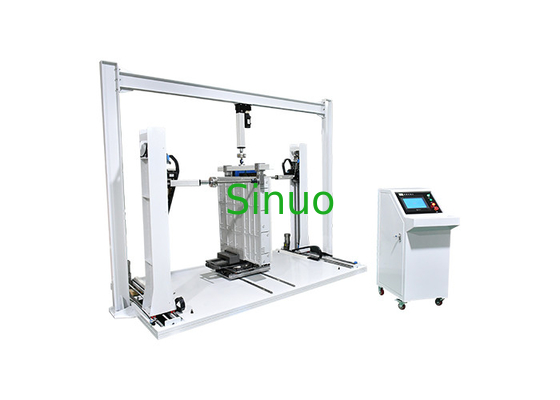

IEC61851-1 EV Testing Equipment Conductive Charging System Static Load Test Bench

Basiseigenschappen
Plaats van herkomst: China
Merknaam: Sinuo
Certificering: Calibration Certificate (Cost Additional)
Modelnummer: SN2601
Handelseigendommen
Minimale bestelhoeveelheid: 1
Prijs: Customized
Betalingsvoorwaarden: T/T
Leveringscapaciteit: 10 reeksen per Maand
Taggen

automobiel het testen materiaal

automobieltestmateriaal

auto elektrische testapparatuur
Specificaties
Range of force: Bovenkant: 0-10KN Speed of force: 0.1-50mm/s
Constant force time: 0-9999s Loading method: Elektrisch
Operation method: PLC controle en touch screen Movable range: 3 tot 8 graden van vrijheid
Power supply: AC220V/50Hz Dimensions: W3300*D2000*H2550mm
High Light:

IEC61851-1 Electric Vehicle Testing Equipment

,

Conductive Charging Vehicle Testing Equipment
Productbeschrijving
IEC61851-1 EV Conductive Charging System Static Load Test Bench Product Information For Static Load Test Bench: Comply with the standards and clauses of EN IEC 61851-1-2019, IEC 61851-1-2017. Used for mechanical strength test of electric vehicle charging piles and similar power supply equipment shells for charging vehicles Test principle: Drive the electric cylinder through the servo motor to apply a certain force value to the top and side of the sample according to the
