IEC 61386-21 Bending Test Apparatus for Rigid, Non-Metallic & Composite Conduits
  • Naam
  • Naam
  • Naam
  • Naam

IEC 61386-21 Bending Test Apparatus for Rigid, Non-Metallic & Composite Conduits

MOQ: 1
Prijs: Customized
Standaardverpakking: Plywood Case
Leveringstermijn: 30 days
Betalingswijze: T/T
Toeleveringskapaciteit: 20 Sets Per Month
Details Informatie
Productbeschrijving
Detailinformatie
Place of Origin
China
Merknaam
Sinuo
Certificering
Calibration Certificate (Cost Additional)
Model Number
SN2903
Applied Standard:
IEC 61386-21
Applied Clause:
Clause 10.4.102
Nominal size of conduit:
16/20/25mm
Wheel lateral radius R1:
48/60/75mm
Radius of profile wheel:
8.1/10.1/12.6mm
Curved wheel groove diameter:
24/30/37.5mm
Productbeschrijving

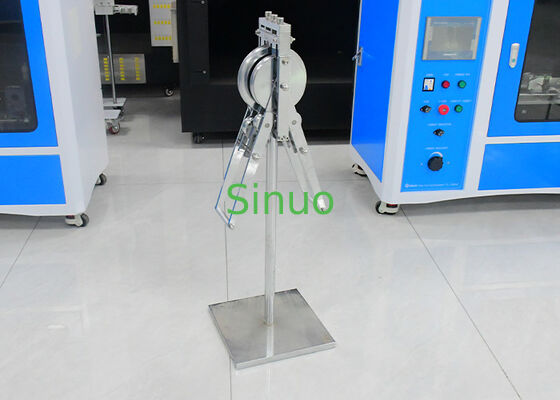

IEC 61386-21 Figure 103 Bending Apparatus For Non-Metallic And Composite Conduit​





Product information:



The Bending Apparatus for Non-Metallic and Composite Conduits is designed for performing 90° bending tests on rigid conduits, non-metallic conduits, composite conduits, and PVC corrugated pipes. It ensures accurate bending performance evaluation according to major international and domestic standards.

This equipment fully complies with JG3050-1998 (Clause 6.6 & Fig. 9), GB 20041.21-2008, GB/T14823.2, ZBG 33008, and IEC 61386-21 clause 10.4.102 & Fig. 103.
It provides standardized bending wheel radii and groove dimensions to meet the specified nominal conduit sizes, ensuring test accuracy and repeatability.

The bending apparatus is widely used by conduit manufacturers, quality inspection centers, research institutes, and certification laboratories.

IEC 61386-21 Bending Test Apparatus for Rigid, Non-Metallic & Composite Conduits 0





Features:



✔ Complies with IEC 61386-21, GB 20041.21, JG3050, GB/T14823.2, ZBG33008

✔ Ideal for bending tests of non-metallic, composite, rigid, and PVC corrugated conduits

✔ Standardized 90° bending angle

✔ Precision-machined bending wheels and grooves

✔ Ensures accurate radius control for repeatable test results

✔ Suitable for laboratory and production quality control





Technical parameters:



Nominal size of conduit Wheel lateral radius R1 Bending wheel track radius R2 Radius of profile wheel and curved wheel groove (R) Curved wheel groove diameter (D)
16 48 84 8.1 24
20 60 105 10.1 30
25 75 131.25 12.6 37.5


IEC 61386-21 Bending Test Apparatus for Rigid, Non-Metallic & Composite Conduits 1



IEC 61386-21 Bending Test Apparatus for Rigid, Non-Metallic & Composite Conduits 2



IEC 61386-21 Bending Test Apparatus for Rigid, Non-Metallic & Composite Conduits 3
