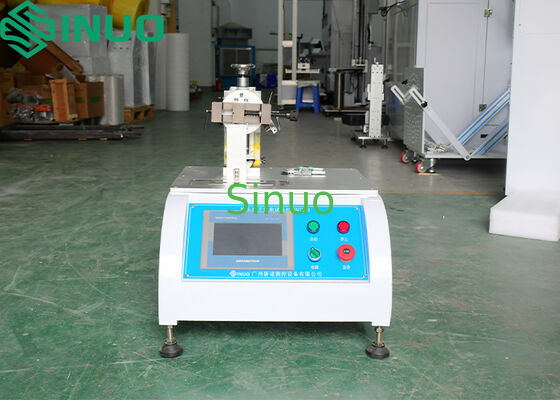

AS/NZS 3112:2017 Figure 2.8 Plug Pin Bending Test Machine

MOQ: 1
Prijs: Onderhandelbaar
Standaardverpakking: Multiplex kast
Leveringstermijn: 30 dagen
Betalingswijze: T/T
Toeleveringskapaciteit: 10 sets per maand
Detailinformatie
Productbeschrijving
Detailinformatie
Plaats van herkomst
China
Merknaam
Sinuo
Certificering
Calibration Certificate (Cost Additional)
Modelnummer
SN2143
Proefstation:
Enkel station
Rijmodus:
Servomotoraandrijving
Proefartikel:
Buigtest van plugpen
Forceer bereik:
0–1000 N
Dwangresolutie:
0.1 N
Testslag:
0–200 mm
Testsnelheid:
Instelbaar 10–300 mm/min (standaard ≤ 50 mm/s)
Intervaltijd:
0–999,9 s, vooraf instelbaar
Productbeschrijving

AS/NZS 3112:2017  Figure 2.8 Plug Pin Bending Test Machine



Product information:


Applicable Standards:

JIS C 8303 Figure 2 and Clause 7.10

AS/NZS 3112:2017 Figure 2.8 and Clause 2.13.7.2



Test Samples:Plugs with insulating sleeves.



Application:

Used to test the bending resistance of plug pins with insulating sleeves, in order to verify the mechanical strength of the plug structure.



Test Principle:

A motor-driven fixture applies force at a position 14 ± 0.5 mm from the plug mating face.

When a displacement of 7.5 ± 0.3 mm is reached, the fixture drives the pin back to the starting position.

The deviation speed shall not exceed 50 mm/s.

One cycle consists of pressing down to 7.5 mm and returning to the starting point.

Duration of one cycle: ≤ 60 s

Interval between cycles: ≤ 10 s

The test automatically stops after 20 cycles.

AS/NZS 3112:2017 Figure 2.8 Plug Pin Bending Test Machine 0

Standard-Specific Test Descriptions:

JIS C 8303 Test

The sample shall be kept in air at 20 ± 2 °C for approximately 1 hour, then immediately fixed in the fixture as shown in Figure 2.
One terminal, at approximately 8.5 mm from the root of the plug, is alternately moved left and right at a rate of 10 times per minute, between positions 1–2 (15°) and 3–4 (15°), for 30 cycles, to determine whether any breakage of the terminal occurs.

AS/NZS 3112 Test

The plug is subjected to bending at a position 14 ± 0.5 mm from the root of the plug, with a displacement of 7.5 ± 0.3 mm, held for 60 seconds, and the same action is repeated 20 times.
After the test, it is checked whether the terminal is broken.

The tester is equipped with specially designed fixtures that allow front–back and left–right adjustment of the plug for fine positioning.
The drive system uses a servo motor, ensuring that the test speed meets the requirements of maximum 50 mm/s and 10 cycles per minute.


Technical Specifications:


Item

Specification

Station

Single station

Control mode

PLC control with touch screen display

Drive mode

Servo motor drive

Test item

Plug pin bending test (fixed displacement mode)

Force range

0–1000 N

Force resolution

0.1 N (real-time force display for contact judgment)

Test stroke

0–200 mm

Sample holding method

Force fixture: special paddle-type fixture for downward force and pin realignment



Sample fixture: centers the pin so the force direction is centripetal

Test speed

Adjustable 10–300 mm/min (default ≤ 50 mm/s)

Interval time

0–999.9 s, presettable

Force application position

14 ± 0.5 mm from the plug mating face

Displacement

7.5 ± 0.3 mm from the starting point

Cycle count

0–9999 cycles, presettable

Dimensions & weight

Approx. 500 × 500 × 1100 mm (W × D × H)

Equipment weight

Approx. 120 kg

Power supply

AC 220 V ±10 %, 50–60 Hz 0.5kW
