PLC Controlled IPX8 Immersion Test Equipment with Stainless Steel Pressure Tank
  • Naam
  • Naam
  • Naam
  • Naam

PLC Controlled IPX8 Immersion Test Equipment with Stainless Steel Pressure Tank

MOQ: 1
Prijs: Customized
Standaardverpakking: multiplex kast
Leveringstermijn: 30 dagen
Betalingswijze: T/T
Toeleveringskapaciteit: 1 sets per maand
Detailinformatie
Productbeschrijving
Detailinformatie
Plaats van herkomst
China
Merknaam
Sinuo
Certificering
Calibration Certificate(Cost Additional)
Modelnummer
SN4411
Binnendiameter tank:
350 mm
Interne hoogte van de tank:
>400mm
Maximale perskracht:
4,0 bar
Metode van drukvorming:
Luchtdrukmodus
De nauwkeurigheid van de druksensor:
0.5 graad
Tankmateriaal:
SUS304 roestvrij staal
Markeren:

PLC controlled immersion test equipment

,

IPX8 stainless steel pressure tank

,

electrical appliance testing equipment with warranty

Productbeschrijving

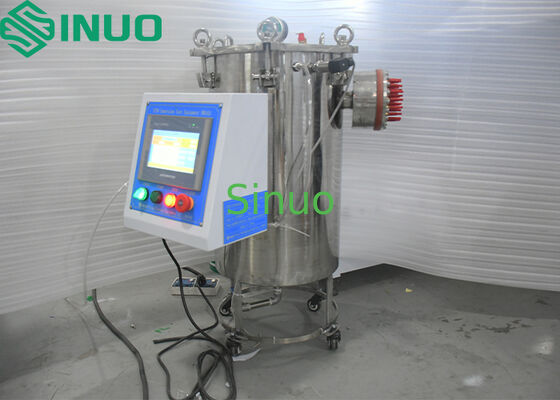

PLC Controlled IPX8 Immersion Test Equipment with Stainless Steel Pressure Tank
Product Overview
This advanced immersion test equipment features PLC control and a stainless steel pressure tank designed for IPX8 waterproof testing according to IEC 60529:2013 standards.
The high-pressure water tank verifies the protective performance of electronic and electrical products, automotive components, motorcycle parts, household appliances, seals, and lighting fixtures during continuous immersion in water. Constructed from durable stainless steel, the equipment operates via PLC control with test parameters directly configurable through the touch screen interface.
Technical Specifications
Parameter Specification
Equipment Power Supply 220V single phase for Korean outlet, 60Hz (16A or less)
Drive System External air compressor drive, 0.5~0.7MPa
IP Code Test Range IPX8 test capability
Sample Size Capacity W170mm × D90mm × H30mm (each 20V/0.1A / 500V 2mA)
IPX8 Pressure Tank Dimensions 350mm diameter, >400mm internal height
Maximum Pressure 4.0 bar
Tank Material SUS304 stainless steel
Pressurization Method Air pressurization mode with sample power terminal
Pressure Sensor Accuracy 0.5 grade
Safety Valve Protection Limit 0.55 MPa
Test Time Range 1-9999 seconds (configurable per test standard)
Key Features
  • PLC-controlled operation with touch screen interface
  • Automatic water supply and pressure control
  • Air pressurization system keeps terminal blocks dry
  • Dual pressure protection: mechanical safety valve and program control
  • Screw rod cover mechanism for easy sample placement
  • Separate pressure gauges for calibration
  • Modular wire withdrawal system for easy maintenance
  • Test chamber filled with sugar water solution (68% sugar, 32% water)

Test Method
After assembling the connector and loading it into the equipment, the interior is pressurized with approximately 25 lines drawn to the exterior. The test chamber is filled with a sugar water solution (user-provided) to simulate immersion conditions.
  PLC Controlled IPX8 Immersion Test Equipment with Stainless Steel Pressure Tank 0
