Name: IPX7 Waterproof Test Chamber Immersion Tank Water Resistance Testing Equipment IEC60529
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN4410
Availability: InStock

MOQ:	1
Prijs:	Customized
Standaardverpakking:	multiplexkast
Leveringstermijn:	30 dagen
Betalingswijze:	T/t
Toeleveringskapaciteit:	10 sets per maand

Details Informatie

Productbeschrijving

Detailinformatie

Plaats van herkomst

CHINA

Merknaam

Sinuo

Certificering

Calibration Certificate (Cost Additional)

Modelnummer

SN4410

Kamer externe grootte:

Ongeveer W 1080* D 1080*H 2300mm (met inbegrip van gietmachines)

Kamer binnengrootte:

Lengte 1000* W 1000* H1800mm

Max. diepte van het testwater:

1,8 m

De breedte van het observatievenster:

200 mm

Waarnemingsvenster:

Aangemaakt glas (dikte: 12mm)

Controlemethode:

Knopen (niet-PLC)

Materiaal van de binnenkamer:

2.0mm dikteroestvrij staal

Extern Kamermateriaal:

Het roestvrije staal plateert + het kader van het Aluminiumprofiel

Productbeschrijving

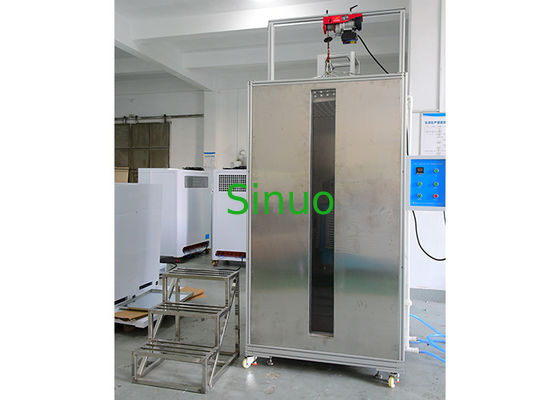

IPX7 Waterproof Test Chamber Immersion Tank Water Resistance Testing Equipment IEC60529

Product information:

The IPX7 Waterproof Test Chamber is designed to verify the waterproof performance of electrical and electronic products under immersion conditions. Built according to IEC60529 (IP Code), IEC60884-1, IEC60335-1, and IEC60598-1 standards, this equipment provides reliable testing for product design, R&D, certification, and factory inspections.

Features & Benefits

Durable Construction – Stainless steel inner chamber (2.0 mm thickness) with aluminum profile frame ensures long service life.
Large Immersion Capacity – Test tank supports up to 1.8 m water depth, suitable for a wide range of products.
Clear Observation Window – 12 mm tempered glass window (200 mm width) for real-time monitoring.
Precise Water Control – Manual inlet/drain valve with 1 mm accuracy scale display.
Flexible Test Settings – Programmable test duration from 0.01 s to 99.99 h.
Safe & Convenient Handling – Electric stainless-steel lifting basket with button-control hoist.

Technical Parameters:

Chamber external size	Approximately W 1080* D 1080*H 2300mm (including casters)
Chamber inner size	Length 1000* W 1000* H1800mm
Max. test water depth	1.8m
Observation window	Tempered glass (thickness: 12mm)
Observation window width	200mm
Water level adjustment method	Water inlet / drain valve, manual adjustment
Water level display	Scale (accuracy 1mm)
External chamber material	Stainless steel plates + Aluminum profile frame
Inner chamber material	2.0mm thickness stainless steel
Electric lifting basket	Made of stainless steel, controlled by electric hoist
Control method	Buttons (non-PLC)
Test time	0.01 second-99.99hours can be preset
Immersion depth requirements	The lowest point of enclosure with a height less than 850 mm is located 1000mm below the surface of the water The highest point of enclosure with a height equal to or greater than 850mm is located 150mm below the surface of the water
Test content	IPX7
Power supply	AC 220V,50Hz, 1KW

Applications and importance

IPX7 testing is a critical step for manufacturers to ensure product safety, quality, and regulatory compliance.
Consumer electronics: Widely used for devices like smartphones, smartwatches, and headphones that are frequently exposed to moisture.
Industrial and automotive: Critical for evaluating components and enclosures used in harsh, wet conditions.
Product safety: Testing helps manufacturers identify weak points in a product's seals and design to prevent malfunction and potential hazards.
Competitive advantage: Achieving an IPX7 rating can be a valuable marketing claim, boosting consumer confidence in the product's durability.
